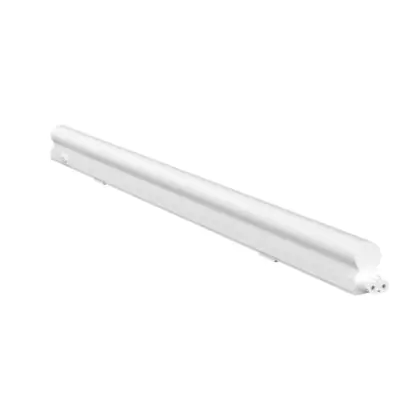

Noxion LED Batten Batline Connect 5W 400lm - 830 Warm White | 30cm - 20x Connectable
- Free shipping above €121 incl. TaxFree shipping above €100 excl. Tax
- Business customer? Purchase on account
- Easy returns within 14 days
Specifications
| SKU | 231951 | |
|---|---|---|
| EAN | 8719157004107 | |
| Brand | Noxion | |
| Manufacturer Name | Noxion LED T5 Batline 5W 3000K 300mm | |
|
i
Our all-in warranty is fully included in the product price and covers both hidden defects and technical defects of the product that occurred before delivery. The warranty period differs per product and ranges from 1 year to a maximum of 7 years.
|
Any Lamp all-in warranty | 4 Years |
| Average Lifetime (h) | 30000 |
|
i
The technology indicates the operating base of a light source. The most well-known and energy-efficient example is LED. Other techniques include Halogen, gas discharge, TL (fluorescent) and the light bulb.
|
Technology | LED Integrated |
|---|---|---|
|
i
This indicates which wattage of your old/conventional lighting is replaced by this LED product.
|
Replaces (Watt) | 1x8 |
|
i
The wattage indicates how much energy a light source consumes. With LED lighting, the wattage is considerably lower than with conventional lighting. LED lamps with a higher wattage generally also have a higher light intensity (number of lumens).
|
Wattage | 5 |
|
i
Lighting with a voltage of 220-240 Volt can be connected directly to the mains. Lighting with a different mains voltage (12 Volt and 24 Volt) requires an (electronic) transformer.
|
Voltage (V) | 220-240 |
|
i
When you dim lights, the full power does not have to be used. You therefore save extra on energy costs. Dimmable lamps can also be used to create an extra cosy atmosphere. Keep in mind that you need a LED dimmer to dim LED lights.
|
Dimmable | Not Dimmable |
|
i
The light color indicates the color of the light emitted: white, colored, or UV. For many products in our assortment, the light is white, available in a range from very warm white to daylight white (expressed in Kelvin). With colored light, you have two options: 1. A single fixed color, such as red or green. 2. RGBW, which means you can adjust the light color at any time: white or colored.
|
Colour of Light | White |
|
i
The colour code is a combination of colour rendering (CRI) and light colour (Kelvin). The first number indicates the colour rendering (1 = very poor colour rendering, 9 = maximum colour fastness). The second and third number contains the light colour. Example: the colour code 830 consists of good colour rendering (8) and warm white light (3000K). |
Colour Code | 830 Warm White |
|
i
|
Colour temperature (Kelvin) | 3000 Warm White |
|
i
Colour rendering is also known as Colour Rendering Index (CRI) and indicates the extent to which a light source reproduces colours, compared to the actual colours in daylight. Products with a good (80-89 Ra) or excellent (90-99 Ra) colour rendering show minimal deviations in the colour spectrum.
|
Colour Rendering (Ra) | 80-89 |
|
i
The colour control type tells you in which way you can regulate the colour of the light. You have the following options:
1. Single colour: This light has one fixed light colour. You cannot change it.
2. CCT: You choose from 2 or 3 fixed colours via a switch, such as warm white or cool white.
3. Tunable white: The white light can take any values in the listed Kelvin scale, for instance 2200K up to 6500K.
4. Dim to warm: Dimming makes the light warmer (more yellow). The more you dim, the warmer the colour.
5. RGB: You can set the light to almost any colour. From red to blue, you fill it in completely as you wish.
By choosing your preferred light colour options, you are one step closer to the right light product.
|
Light colour options | Single Color |
|
i
The number of lumens (lm) is the light output of a light source. The higher the number of lumens, the more light the light source emits. The wattage and the number of lumens are not connected to each other. An LED lamp with a low wattage can have a higher number of lumens than a conventional lamp with a high wattage.
|
Luminous Flux (Lumen) | 400 |
|
i
The Luminous Efficacy (lm/W) indicates how efficiently a light source uses energy. We divide the number of lumens by the wattage. The higher the number, the more efficient a product is in terms of energy consumption. LED lighting has a considerably higher lumen/Watt ratio than conventional lighting.
|
Luminous Efficacy (lm/W) | 80 |
|
i
The power factor indicates how efficiently a luminaire uses electricity. The rule is: the higher the power factor, the more efficient the power consumption. A product with a high power factor (0.85 - 0.95) is also the safest. This is because the amount of unnecessary power consumption (blind current) is very limited.
|
Power factor | >0.50 |
| Including bulb | Yes | |
| Suitable for Outdoor | No | |
| Length | 30cm | |
|
i
This filter allows you to refine your search by selecting specific types of light sources. Choose from options such as LED bulbs, LED tubes, or LED spots to find the perfect lighting solution for your needs.
|
Product Type Category | LED Batten |
| Mounting Method | Surface | |
|---|---|---|
| Fixture Connection | Screw [Screw connector] | |
| Optical Cover | PC (Polycarbonate) | |
|
i
The IP value indicates the degree of protection against the ingress of moisture and dust. The 1st digit (0 = not protected until 6 = completely dustproof) indicates the protection against dust. The 2nd digit (0 = not protected until 8 = protected against immersion) indicates the protection against water. Products with an IP44 rating are splashproof and products with an IP65 rating or higher are (completely) dustproof and waterproof. |
IP-rating | IP20 |
|
i
The impact protection value (IK) stands for impact resistance and protection against vandalism. This is expressed in combination with 2 digits (IK00 - IK10). Products with IK00 are not protected against resistance. Products with IK10 offer resistance to shocks of 20 Joule and are also vandal-proof. |
Impact Protection (IK) | IK02 - 0.20 joule |
| Operating Temperature | -15 to +45 | |
| Housing | PC (Polycarbonate) | |
| Colour of the Fixture | White | |
| Colour of material | White | |
|
i
Lighting with a built-in emergency lighting unit (battery) continues to burn for a certain time if the power fails. |
Emergency Lighting | No Emergency Unit |
| Series | Batline |
|
i
It may happen that the length of this product differs from your old lighting fixture. As a result, the product does not fit in your current fixture or in the relevant place.
|
Length (mm) | 300 |
|---|---|---|
| Width (mm) | 28 | |
| Height (mm) | 35.6 |
| Type of sensor | No Sensor |
|---|
Description Noxion LED Batten Batline Connect 5W 400lm - 830 Warm White | 30cm - 20x Connectable
Advantages :
- Energy efficiency class : A
- Lifespan up to 30,000 hours
- No loss of brightness
- Warm white - 3000 K (kelvin)
- Flicker-free lighting
- Up to x20 connections in series
- Highly resistant materials
- No maintenance required
- 3 years of total warranty
- Neutral color: White
Energy efficiency class : A
This Noxion LED batten has a high energy efficiency class : A. This assures significant reduction of the impact on the environment. In addition, this LED lighting product allows energy savings that can go up to 50% compared to traditional fluorescent tubes. This LED batten only consumes 5 watts.
Lifespan up to 30,000 hours
The energy efficiency of Noxion materials guarantees a lifetime of up to 30,000 hours. On the contrary, a classic fluorescent lighting has an average life cycle of only 10,000 hours. If the lighting is used on average 10 hours a day, 5 days a week, we reach 50 hours a week. That means 2600 hours of consumption per year (52 weeks x 50 hours). This Noxion LED batten has an average lifespan of more than 10 years !
No loss of brightness
With traditional fluorescent tubes, brightness is reduced after approximately 10,000 hours. This LED lighting product will not suffer from any loss of brightness. Indeed, it conforms to the EU directives and is built with very high quality components.
Warm white - 3000 K (Kelvin)
The color temperature 3000 K (Kelvin) corresponds to the warm white. It is ideal for lighting warehouses, parking, supermarkets and homes.
Flicker-free
This fixture has no flicker, you will not see any visible flicker in the image. Some people are very sensitive to the glare produced by traditional fluorescent tubes, which can cause side effects such as headaches or fatigue. A fluorescent tube flickers about 50 times per second; Although this is not noticeable to the naked eye, your brain is very sensitive and detects these flickers. This LED batten, flicker-free, ensures your visual comfort.
Up to x20 connections in series
This lighting allows you to connect multiple products to illuminate very large spaces. This makes the installation of important lighting systems much faster and easier. For models from 5W to 12W, they can be connected up to 20 times.
Highly resistant materials
The housing of the product is made of polycarbonate, a material known for its remarkable strength. This product offers high performance at low and high temperatures: from -15 to +45 degrees.
No maintenance required
Noxion products require no maintenance. They allow low maintenance costs and constant lighting throughout the life of the product. The driver, connectors and mounting clips are included.
3 years of total warranty
Thanks to the experience of Noxion in the lighting sector and the rigorous selection of materials and components, we are able to offer you a total warranty of 3 years for this LED product.
Neutral color : white
The neutral white color allows the product to be installed discreetly. If you need help or additional information, feel free to contact our team of experts.
