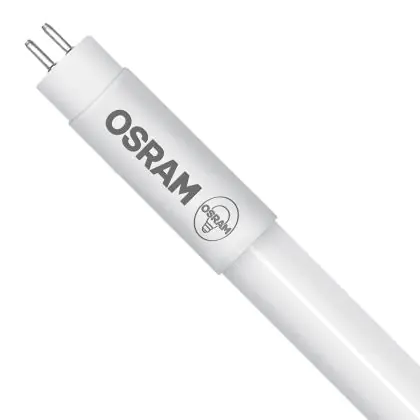

Osram LED Tube T5 SubstiTUBE (UN) High Efficiency 10W 1500lm - 840 Cool White | 85cm - Replaces 21W
Need help?
Contact our light specialists for free advice.- Free shipping above €121 incl. TaxFree shipping above €100 excl. Tax
- Business customer? Purchase on account
- Easy returns within 14 days
Specifications
Clear
General Information
| SKU | 234039 | |
|---|---|---|
| EAN | 4058075138162 | |
| Brand | Osram | |
| Manufacturer Name | ST5HE21-0.9M 10W/840 230VUN G5 FLH1 | |
|
i
The recommended quantity refers to the number of products pre-packaged by the manufacturer. When you buy this quantity, we deliver the products in the original package from the manufacturer.
|
Full box quantity | 10 |
|
i
Our all-in warranty is fully included in the product price and covers both hidden defects and technical defects of the product that occurred before delivery. The warranty period differs per product and ranges from 1 year to a maximum of 7 years.
|
Any Lamp all-in warranty | 5 Years |
|
i
Every bulb or fixture has an energy efficiency class A to G. Energy label A is the most efficient and G the least. LED lighting is the most sustainable lighting technique. Even if a LED bulb is rated E or lower, they still save 70% of energy compared to conventional lighting with the same energy label. Why is it the same label then? To motivate LED brands to get even more durable. |
Energy efficiency class | D |
| Energy efficiency class old | A++ | |
| Average Lifetime (h) | 60000 |
Technical Information
|
i
The technology indicates the operating base of a light source. The most well-known and energy-efficient example is LED. Other techniques include Halogen, gas discharge, TL (fluorescent) and the light bulb.
|
Technology | LED |
|---|---|---|
|
i
This indicates which wattage of your old/conventional lighting is replaced by this LED product.
|
Replaces (Watt) | 21 |
|
i
The wattage indicates how much energy a light source consumes. With LED lighting, the wattage is considerably lower than with conventional lighting. LED lamps with a higher wattage generally also have a higher light intensity (number of lumens).
|
Wattage | 10 |
|
i
When you dim lights, the full power does not have to be used. You therefore save extra on energy costs. Dimmable lamps can also be used to create an extra cosy atmosphere. Keep in mind that you need a LED dimmer to dim LED lights.
|
Dimmable | Not Dimmable |
|
i
The cap/base of a bulb is the part that connects it to the socket in the fixture. E27 (Edison screw) and E24 (small Edison screw) caps/bases are among the most popular, although this depends on your location. GU10 is generally the most common cap/base for spotlights. Check which cap/base you need carefully as many other types are also available.
|
Cap / Base | G5 |
|
i
Because you can set the direction of the light yourself, a rotatable LED tube is extra efficient with energy. Moreover, the light does not shine around 360 degrees unnecessarily, as is the case with conventional fluorescent tubes.
|
Rotatable | No |
|
i
The colour code is a combination of colour rendering (CRI) and light colour (Kelvin). The first number indicates the colour rendering (1 = very poor colour rendering, 9 = maximum colour fastness). The second and third number contains the light colour. Example: the colour code 830 consists of good colour rendering (8) and warm white light (3000K). |
Colour Code | 840 Cool White |
|
i
|
Colour temperature (Kelvin) | 4000 Cool White |
|
i
Colour rendering is also known as Colour Rendering Index (CRI) and indicates the extent to which a light source reproduces colours, compared to the actual colours in daylight. Products with a good (80-89 Ra) or excellent (90-99 Ra) colour rendering show minimal deviations in the colour spectrum.
|
Colour Rendering (Ra) | 80-89 |
|
i
The light color indicates the color of the light emitted: white, colored, or UV. For many products in our assortment, the light is white, available in a range from very warm white to daylight white (expressed in Kelvin). With colored light, you have two options: 1. A single fixed color, such as red or green. 2. RGBW, which means you can adjust the light color at any time: white or colored.
|
Colour of Light | White |
|
i
The colour control type tells you in which way you can regulate the colour of the light. You have the following options:
1. Single colour: This light has one fixed light colour. You cannot change it.
2. CCT: You choose from 2 or 3 fixed colours via a switch, such as warm white or cool white.
3. Tunable white: The white light can take any values in the listed Kelvin scale, for instance 2200K up to 6500K.
4. Dim to warm: Dimming makes the light warmer (more yellow). The more you dim, the warmer the colour.
5. RGB: You can set the light to almost any colour. From red to blue, you fill it in completely as you wish.
By choosing your preferred light colour options, you are one step closer to the right light product.
|
Light colour options | Single Color |
|
i
The number of lumens (lm) is the light output of a light source. The higher the number of lumens, the more light the light source emits. The wattage and the number of lumens are not connected to each other. An LED lamp with a low wattage can have a higher number of lumens than a conventional lamp with a high wattage.
|
Luminous Flux (Lumen) | 1500 |
|
i
The Luminous Efficacy (lm/W) indicates how efficiently a light source uses energy. We divide the number of lumens by the wattage. The higher the number, the more efficient a product is in terms of energy consumption. LED lighting has a considerably higher lumen/Watt ratio than conventional lighting.
|
Luminous Efficacy (lm/W) | 150 |
|
i
This filter allows you to refine your search by selecting specific types of light sources. Choose from options such as LED bulbs, LED tubes, or LED spots to find the perfect lighting solution for your needs.
|
Product Type Category | LED Tube T5 |
| Type of sensor | No Sensor |
Lamp Information
|
i
You need a LED starter if the fluorescent lighting in your current fixture also contains a starter. In that case, you have a fixture with a conventional ballast (EM). A LED starter replaces your current starter and ensures that a LED tube works.
|
LED Starter included | No |
|---|---|---|
| Requires Ballast | No | |
|
i
A ballast can be seen as an energy regulator that switches on the lighting. Is there a starter in the fixture? Then this is a conventional ballast (EM). Fixtures with an electronic ballast (HF) don't have a starter. A LED driver can be compared to an electronic ballast and only works with LED lighting.
|
Ballast for LED Tubes | Universal – Can match any installation |
|
i
High Output - Gives higher lumen output vs standard tube
Standard Output - average lumen output Ultra Output - Highest Lumen out, ceiling must be over 4 metres High Efficiency - High lumen lumen / watt ratio Ultra Efficiency - LED tubes with best energy label (A + B) |
LED Tube Output | High Efficiency |
| Housing | Glass | |
| Series | Substitube |
Dimensions
|
i
The most common lengths for T8 LED Tubes are 60cm, 90cm, 120cm and 150cm. For T5 LED Tubes this concerns 55cm, 85cm, 115cm and 145cm. Switching to LED? Then always check the length of your current fluorescent lighting. Do you want to know more? Then read our blog! |
Length | 85cm |
|---|---|---|
|
i
It may happen that the length of this product differs from your old lighting fixture. As a result, the product does not fit in your current fixture or in the relevant place.
|
Length (mm) | 850 |
| Diameter (mm) | 16 |
Downloads
Description Osram LED Tube T5 SubstiTUBE (UN) High Efficiency 10W 1500lm - 840 Cool White | 85cm - Replaces 21W
The Osram LED Tube T5 SubstiTUBE (UN) High Efficiency 10W 1500lm - 840 Cool White | 85cm - Replaces 21W is the perfect alternative for a standard 21W fluorescent tube in fixtures with a ballast. With this fluorescent tube you are guaranteed with a long lifetime and 5 Years Any-Lamp.com all-in-warranty.
When switching to LED tubes it is important that you check your current tubes’ length and wattage This 10W LED Tube replaces a conventional 21W Tube with a length of 850mm. This tube will save up to 70% in energy costs in comparison with standard fluorescent tube.
This product has a lifetime of 60000 hours. In a normal business environment this lamp will last more than 15 years (52 weeks per year, 10 hours per day, from monday till friday). The lifetime is much longer than a standard fluorescent tube, which will only last for 10.000 hours. Of course you will have5 Years Any-Lamp.com all-in-warranty.
The diameter equal to a normal fluorescent tube: 26mm. The light colour is 4000K - Cool White, also known as 840 Cool White. That makes this LED tube perfect for lighting company halls, garages and factories.
You can install this tube easily yourself:
- Switch of the power
- Pivot the old tube out of the fixture
- Pivot the new LED tube in the fixture
- Switch on the power and save on energy costs immediately
